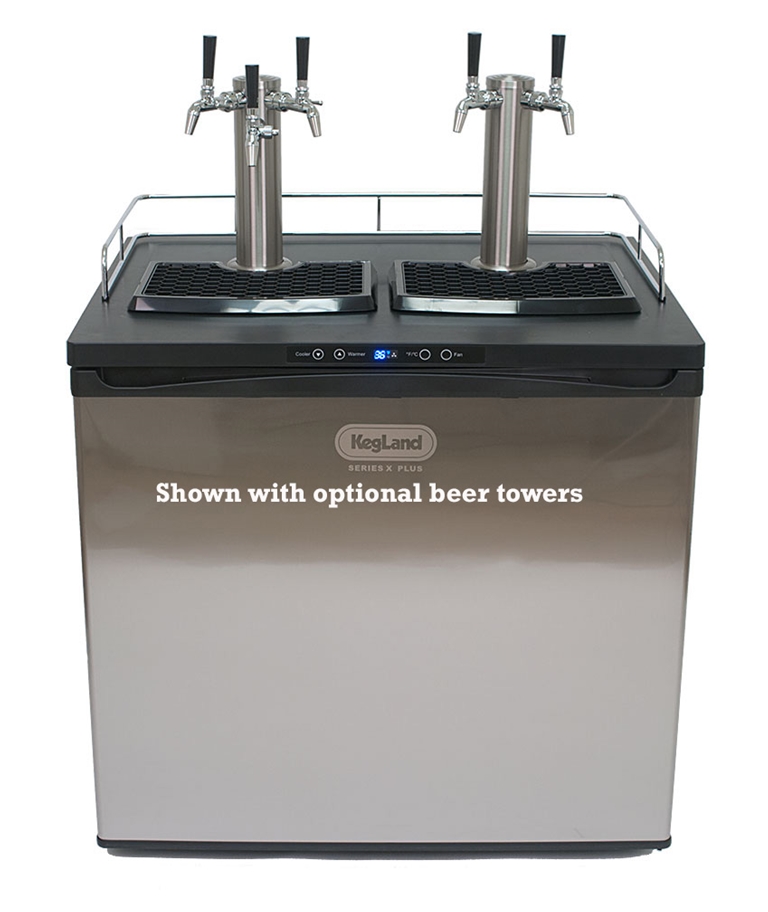

KegLand Series X Plus Kegerator

  • Item #D26
  • Price: $1399.99
  • Part #KL20145

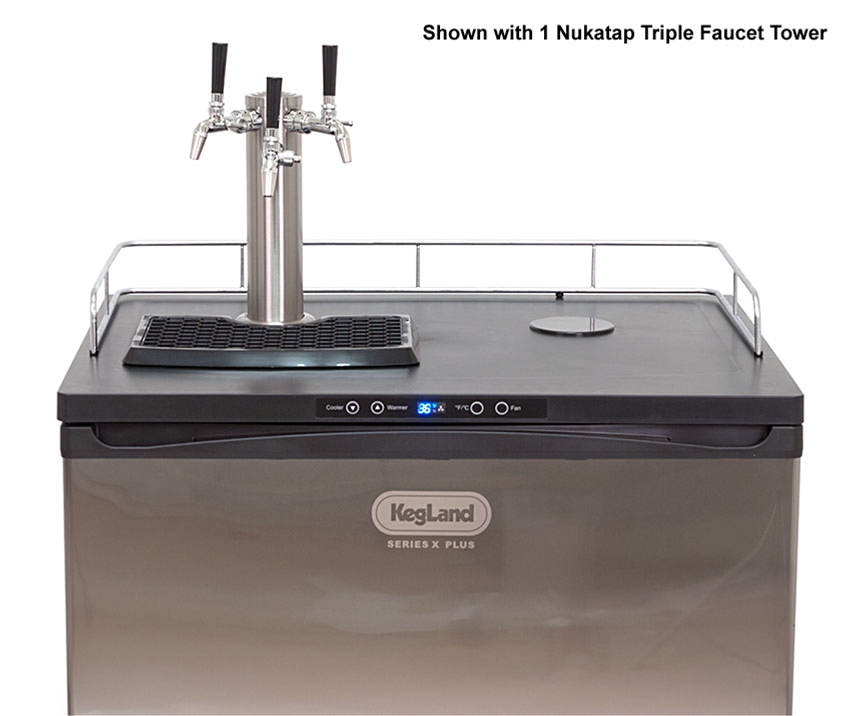

Pick Your First Tower Option:

Choose Your Tower to Add 1 to 4 Nukatap Faucets:

Choose Your Second Tower:

Add a Second Tower to add 1 to 4 More Nukatap Faucets
- +

In stock, will ship on Monday, January 30

Free Curbside Truck Delivery to the lower 48 states*

•  Wide 26° to 82° F Range
•  Holds up to eight Cornelius style homebrew kegs (8½" diameter)
•  Holds up to six 1/6 Barrel Commercial Sankey Kegs (9 3/16" diameter)
•  Latest Nukatap Faucets with all tower options
•  Easy to connect Duotight fittings included with all towers
• Tower Cooling Fan with front panel switch cools one or two towers
•  Removable Drip Trays for Easy Cleaning
• Optional C02 Regulator (choose a single body or dual body for dual pressure capability) in case you do not have one
  One Year Warranty (and we stock all vital spare parts in case you need them after the warranty period)

*For most customers. Extremely remote addresses may incur additional trucking charges, we will contact you before shipping if this is the case.

Cold does not rise. You will find that a beer tower elevated above a refrigerator will always remain warmer than the refrigerator, resulting in initial pours from the kegerator that are warm and foamy, followed by colder pours once you have dispensed a beer or two. At home this is a real problem, unless you pour beers in quick succession. This is the only kegerator to include a tower cooling fan as standard equipment, and also feature a fan on/off switch on the front digital control panel.
The beauty of the KegLand Series X Plus is the extended range thermostat included. Unlike kegerators with standard 30° to 50° temperature ranges, the Series X can be adjusted easily with the front panel digital display from 26° to 82° F (ambient temperature permitting), which means you can also use your kegerator as a fermentation chamber for ales in summer, a small refrigerator for food items, or even a wine cellar. Keep in mind the unit only cools, and does not heat, and a temperature of say 65 degrees F. is only possible if the temperature outside the kegerator is 65 degrees or warmer.

The drip trays rests on top of the unit, and can be removed for easy cleaning. This simple two piece design cleans up quick in your sink, and eliminates the need to clean a sticky drip tray on the unit.

 Included with all models are a a C02 bottle mounting bracket, and integral tower cooling fan.  You will need to provide a flat bottom 5 pound C02 cylinder (available at welding supply stores and fire extingisher service firms). You select the beer tower/faucet option that is right for you.

If you need a C02 regulator you can order an optional KegLand MK4 Single Body Regulator or a KegLand MK4 Twin Body Regulator so you can have two dispensing pressures.

Setup is easy with Duotight connections included for everything from the faucet shanks to the optional regulator. These make it easy to connect and disconnect gas and beer lines, and eliminate the need for hose clamps. As noted below, you will need additional parts depending on how many faucets you get, and if you want to dispense home brew or a commercial keg.

Important Installation Note: Series X Plus kegerators need 5" of clearance on both sides and the back of the unit when installing so they do not overheat. This model cannot be installed flush into a countertop with no side clearance like a dishwasher. The side walls have radiators inside that dissipate heat, and they cannot be blocked. These are designed for indoor use, and a maximum ambient temperature of 85° F. or less.  If you need a kegerator for outdoor use,  buy an outdoor model rated for warmer ambient temperatures.

Needed but not included for each ball lock home brew keg supplied faucet in your tower:
1 G49 DuoTight Gas Ball Lock
1 G50 DuoTight Beer Ball Lock

For example, if you buy a Triple Tower and plan on dispensing three ball lock kegs, you will need:
3 G49 DuoTight Gas Ball Locks
3 G50 DuoTight Beer Ball Locks

And if you buy a Triple Tower for the left tower and a Quad Tower for the right tower and plan on dispensing 7 ball lock kegs, you will need:

G49 DuoTight Gas Ball Locks
G50 DuoTight Beer Ball Locks

Needed but not included for each Sankey commercial beer keg supplied faucet in your tower:
1 C34 Stainless Sankey Coupler with relief valve

For example, if you buy a single Double Faucet Tower and plan on dispensing two commercial kegs, you will need:
2 C34 Sankey Couplers

And if you buy a Double Faucet Tower for your left tower and a Double Faucet Tower for your right tower and plan to dispense two commercial kegs and two ball lock home brew kegs you will need:

G49 DuoTight Gas Ball Locks
G50 DuoTight Beer Ball Locks

2 C34 Sankey Couplers

Outside Dimensions:

35½" wide
28" deep, 35" with C02 Bottle Mounted on back
36" tall (with caster wheels but no drip tray, tower, or chrome guard rail)
52" tall with caster wheels and tower

Internal Dimensions:
31.5" wide
17" deep
28.25" tall

Power Consumption:
.09 Amps, runs on 110 volts.

The Kegs Below Will Fit Inside

5 Gallon 8½" diameter Ball Lock or Pin Lock  Cornelius Keg - 8 ( or 4 Ball Lock and one 1/6 barrel Sankey keg)
2.5 Gallon 8½" diameter Cornelius Keg - 8
5 Gallon 9¼" diameter Cornelius Ball or Pin Lock Keg - 6

Commercial Kegs:
5.16 Gallon Sixth Barrel - 6
7¾ Gallon any type - 2
15½ Gallon - 2

Note: The All Rounder Fermzilla will fit, although the 27 Liter Fermzilla with valve is too tall to fit.

Normal Kegerator Operating Sounds

KegLand Kegerators have been manufactured with the new r600a refrigerant gas used on many appliances. It is used because it is the most environmentally friendly gas and it is also extremely energy efficient. The new r600a gas does make some unusual sounds and we have recorded, amplfied, and included links to the sounds below so you know what kind of sounds this modern unit makes (all units with r600a gas make similar sounds).

If you want to know how loud this unit is before ordering, download a sound meter app for your smartphone or get an inexpensive decibel meter. Reference the figures below which give the noise level when the compressor is on and put your decibel meter by your computer speaker, and turn up the speaker until the meter reads 44 to 62 db. This will give you a good idea of the sound a kegerator makes when running.  Keep in mind, that like a refrigerator, it only makes noise when it is cooling, so it is silent a lot of the time.

Outside the rear of the unit from the Compressor (ranges from 50 to 62 db with a sound meter) Click Here
Outside the back of the unit one foot from the Compressor (ranges from 52 to 65 db with a sound meter)  Click Here

Click here for assembly and use instructions.

Click here for warranty information

Click here for 60 day return policy terms.

Average rating 10 out of 10 ( based on 2 reviews )

Nice unit

Review by John on 8/14/2022

I got this as an upgrade from my old Edgestar, and only have one tower currently. Stores a lot of kegs in a small space, and the fan keeps the tower cold. It does make a bit of noise like all refrigerators, so don't put it next to the bedroom. I keep the tower fan off except when I am drinking, which cuts the noise a bit and is supposed to conserve energy.

Flagship of your homebrewery

Review by Alex on 4/11/2022

I got the 8 tap with 4 std and 4 flow control taps, all w/self closing springs. 6 homebrews, 1 commercial, and sparkling water. It holds a lot of kegs, looks good, has premium casters, great features for a homebrewer. It is expensive, but good value. The tower fan is a bit noisy when on, but the actual coooling function is quiet. There is a LOT of set up: tubing, casters, towers, shanks, taps. I consider this fun, like a beer-Lego kit, but if you are not mechanically inclined you may need help. As far as cons, I wouldn't recommend the flow control taps. On a balanced line length and pressure that pours well on the std tap, it poured foamy on the flow control and got worse if I slowed the flow. I would only recommend for seltzers, sparkling water, etc. 1 of 8 shanks didn't have a perfect coating inside, so I guess it isn't all stainless. & Everything included is designed for their proprietary duotight fittings, so you will have to buy more of those to finish it.

Nov 28, 2022 by Matt

Q: Does it come with the casters?

A: Yes, it comes with 4 casters

Mar 02, 2022 by Larry

Q: I have my own tower, what sizes screws do I use to secure the tower to the kegerator?

A: Use 4 M3 by 20mm long screws to secure each tower.

Feb 06, 2022 by Matt

Q: Is there a way to order this with just the towers and no faucets? I already have the faucets I need.

A: No, the towers come with faucets. You can order it without towers.

Feb 05, 2022 by Lt

Q: How many corny kegs will fit with a commercial 1/2 keg

A: Four 8.5" wide Corny Kegs will fit with a commerical 1/2 or full sized keg.

Jan 19, 2022 by John

Q: Is the door reversible?

A: Yes
