KegLand Series X Plus 6 Faucet Bridge Tower Kegerator

  • Item #D26
  • Price: $1789.96
  • Part #KL20145

Add Discounted Faucets

If you don't have faucets, add them now. This fits Nukatap & Intertap Faucets only

Add Discounted Faucet Handles

If you don't have faucet handles, add them now and save

Add a discounted C02 Regulator

If you don't have a C02 regulator, add one now

Pick Your Discounted Keg Connectors for Homebrew Kegs

Pick two options, you will need both gas and beer connectors for each keg

Pick Your Discounted Keg Connectors for Commercial Beer

Sankey couplers fit commercial beer kegs
In stock - 1 units available.
- +

In stock, will ship on Thursday, December 8

Free Curbside Truck Delivery to the lower 48 states*

•  Wide 26° to 82° F Range

•  Holds up to eight Cornelius style homebrew kegs (8½" diameter)

•  Holds up to six 1/6 Barrel Commercial Sankey Kegs (9 3/16" diameter)

•  Latest Nukatap Faucets with all tower options

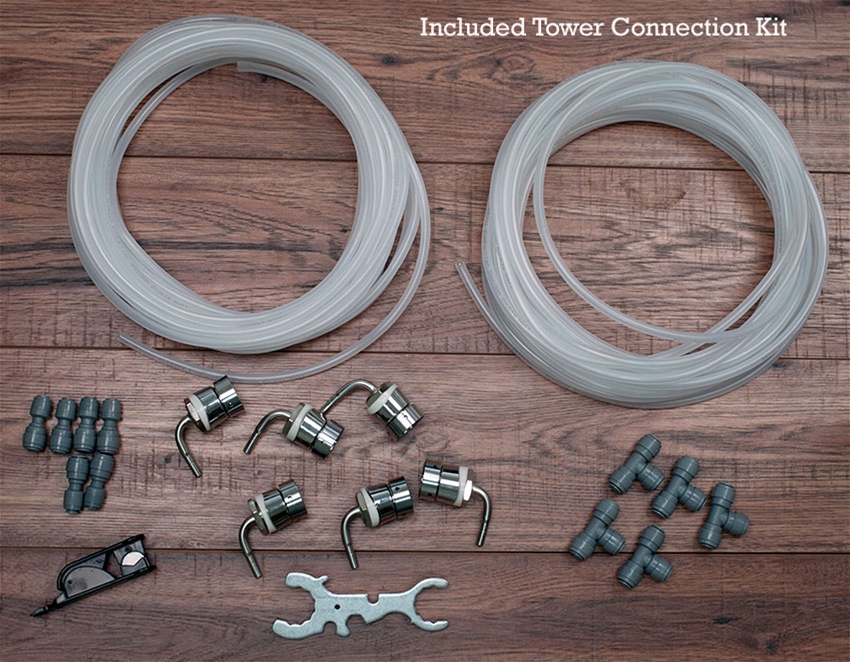

•  Easy to connect Duotight fittings and EvaBarrier Tubing Included

• Tower Cooling Fan with front panel switch

• Includes Series X Plus full length stainless drip tray

• Optional C02 Regulator (choose a single body or dual body for dual pressure capability) in case you do not have one

•  One Year Warranty (and we stock all vital spare parts in case you need them after the warranty period)

*For most customers. Extremely remote addresses may incur additional trucking charges, we will contact you before shipping if this is the case.

The KegLand Series X Plus is the holds up to 8 kegs in a unit that is only 36" wide, making it the most space efficient kegerator available.

Cold does not rise. You will find that a beer tower elevated above a refrigerator will always remain warmer than the refrigerator, resulting in initial pours from the kegerator that are warm and foamy, followed by colder pours once you have dispensed a beer or two. At home this is a real problem, unless you pour beers in quick succession. This is the only kegerator to include a tower cooling fan as standard equipment, and also feature a fan on/off switch on the front digital control panel.

 The beauty of the KegLand Series X Plus is the extended range thermostat included. Unlike kegerators with standard 30° to 50° temperature ranges, the Series X can be adjusted easily with the front panel digital display from 26° to 82° F (ambient temperature permitting), which means you can also use your kegerator as a fermentation chamber for ales in summer, a small refrigerator for food items, or even a wine cellar. Keep in mind the unit only cools, and does not heat, and a temperature of say 65 degrees F. is only possible if the temperature outside the kegerator is 65 degrees or warmer.

The full length stainless drip tray rests on top of the unit, and can be removed for easy cleaning. This simple two piece design cleans up quick in your sink, and eliminates the need to clean a sticky drip tray on the unit.

Included is a C02 bottle mounting bracket, and integral tower cooling fan. You will need to provide a flat bottom 5 pound C02 cylinder (available at welding supply stores and fire extingisher service firms).

If you need a C02 regulator you can order an optional KegLand MK4 Single Body Regulator or a KegLand MK4 Twin Body Regulator (twin body so you can have two different dispensing pressures).

Setup is easy with Duotight connections included for everything from the faucet shanks to the optional regulator. These make it easy to connect and disconnect gas and beer lines, and eliminates the need for hose clamps.

Your main decision is if your taps will all dispense home brew ball lock kegs, or if some taps will dispense ball lock home brew kegs and others will dispense commercial kegs, which need a Sankey coupler instead of ball locks. If you are dispensing all home brew or all commercial, just pick an option above and we will include all the keg connectors you need for your six kegs.

If, on the other hand, you want to say have say 5 taps dispense home brew ball lock kegs and one tap dispense a commercial keg, you will need to order 5 G49 Ball Lock Gas Connectors, 5 G50 Beer Ball Lock Gas Connectors, and one C34 Sankey Coupler.


Important Installation Note: Series X Plus kegerators need 5" of clearance on both sides and the back of the unit when installing so they do not overheat. This model cannot be installed flush into a countertop with no side clearance like a dishwasher. The side walls have radiators inside that dissipate heat, and they cannot be blocked. These are designed for indoor use, and a maximum ambient temperature of 85° F. or less.  If you need a kegerator for outdoor use,  buy an outdoor model rated for warmer ambient temperatures.

Specifications:

35½" wide

28" deep, 35" with C02 Bottle Mounted on back

36" tall (with caster wheels but no drip tray, tower, or chrome guard rail)

56" tall with caster wheels and tower

Internal Dimensions:

31.5" wide

17" deep

28.25" tall

Power Consumption:

.09 Amps, runs on 110 volts.


The Kegs Below Will Fit Inside

Homebrew:

5 Gallon 8½" diameter Ball Lock or Pin Lock  Cornelius Keg - 8 ( or 4 Ball Lock and one 1/6 barrel Sankey keg)

2.5 Gallon 8½" diameter Cornelius Keg - 8

5 Gallon 9¼" diameter Cornelius Ball or Pin Lock Keg - 6

Commercial Kegs:

5.16 Gallon Sixth Barrel - 6

7¾ Gallon any type - 2

15½ Gallon - 2


Normal Kegerator Operating Sounds

KegLand Kegerators have been manufactured with the new r600a refrigerant gas used on many appliances. It is used because it is the most environmentally friendly gas and it is also extremely energy efficient. The new r600a gas does make some unusual sounds and we have recorded, amplfied, and included links to the sounds below so you know what kind of sounds this modern unit makes (all units with r600a gas make similar sounds).


If you want to know how loud this unit is before ordering, download a sound meter app for your smartphone or get an inexpensive decibel meter. Reference the figures below which give the noise level when the compressor is on and put your decibel meter by your computer speaker, and turn up the speaker until the meter reads 44 to 62 db. This will give you a good idea of the sound a kegerator makes when running.  Keep in mind, that like a refrigerator, it only makes noise when it is cooling, so it is silent a lot of the time.

Outside the rear of the unit from the Compressor (ranges from 50 to 62 db with a sound meter) Click Here
Outside the back of the unit one foot from the Compressor (ranges from 52 to 65 db with a sound meter)  Click Here
