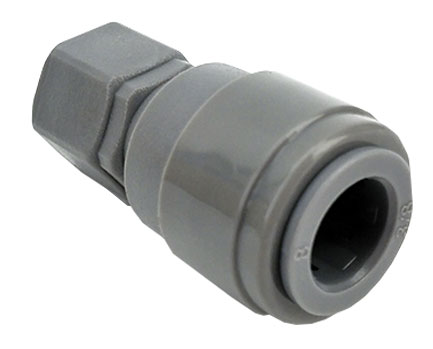

DuoTight 9.5mm to Female Flare

  • Item #C58
  • Price: $3.99
  • Part #KL01037
- +

In stock, will ship on Monday, October 3

If you are looking to an alternative to cutting tubing and pressing it over hose barbs with hose clamps, with the resultant difficulty in dissassembly, you might find the DuoTight System interesting. Based on double O ring sealed push in fittings, DuoTight allows easy repeated hose attachment and removal, as well as EVABarrier lined odorless tubing that costs no more than economy PCV tubing.

DuoTight features a patented dual O ring sealing system using high quality EPDM o-rings. The double o-ring means DuoTight have twice the sealing surface surface when compared with other push in fittings. This makes DuoTight even more reliable and reduces the chance of a leak. The double o-ring system also means that you can bend the hose with much tighter radius without causing leaking issues.

Clamps are not needed. To use the DuoTight System, simply cut your EVABarrier tubing to length (cut tubing square for best results, not at an angle), and push into the DuoTight fitting. To remove the tubing, simply press back on the sealing flange and pull the hose out. EVABarrier Hose and DuoTight fittings are rated up to 100 PSI.

This  fitting screws onto male flare fittings such as those found on ball lock disconnects, and lets you connect 9.5mm outer diameter tubing to disconnects.

The fitting seals tight without teflon tape when using plastic ball and pin locks, but you will need to wrap stainless male flare threads is a bit of teflon tape to get them to seal before threading these on.


Compatible with: - EVABarrier 6.5mm ID x 9.5mm OD line (item C61)


(1)
Average rating 10 out of 10 ( based on 1 review )

Needed for duotight tubing

Review by Stephen on 6/16/2021

This is a great connector is you want to use the slightly larger duotight tubing. I only use this in one application as a blowoff from my keg when I'm purging it of oxygen during fermentation. I have my fermenter connected to the keg, then this attached to the gas side to it pushed the oxygen from the top of the keg. Works great and make a leak proof seal.

Jun 18, 2022 by Mike

Q: Is this threaded on the side that would attach to a ball lock quick disconnect?

A: Yes, the female flare side screws onto a standard ball lock threaded disconnect.
