DuoTight 9.5mm Check Valve

  • Item #C53
  • Price: $3.99
- +

In stock, will ship on Saturday, June 10

If you are looking to an alternative to cutting tubing and pressing it over hose barbs with hose clamps, with the resultant difficulty in dissassembly, you might find the DuoTight System interesting. Based on double O ring sealed push in fittings, DuoTight allows easy repeated hose attachment and removal, as well as EVABarrier lined odorless tubing that costs no more than economy PCV tubing.

DuoTight features a patented dual O ring sealing system using high quality EPDM o-rings. The double o-ring means DuoTight have twice the sealing surface surface when compared with other push in fittings. This makes DuoTight even more reliable and reduces the chance of a leak. The double o-ring system also means that you can bend the hose with much tighter radius without causing leaking issues.

Clamps are not needed. To use the DuoTight System, simply cut your EVABarrier tubing to length (cut tubing square for best results, not at an angle), and push into the DuoTight fitting. To remove the tubing, simply press back on the sealing flange and pull the hose out. EVABarrier Hose and DuoTight fittings are rated up to 100 PSI.

This fitting fits 9.5mm outer diameter tubing and features a one way check valve to prevent back flow.

The fitting seals tight without teflon tape when using plastic ball and pin locks, but you will need to wrap stainless male flare threads is a bit of teflon tape to get them to seal before threading these on.

Compatible with: - EVABarrier 6.5mm ID x 9.5mm OD line (item C61)

Jul 27, 2021 by Jonathan Hankins

Q: The ones i received from my order did not look like this. It did not have a flow arrow as depicted. It has a blue end and a white end. Which way does this go. Please update your picture.

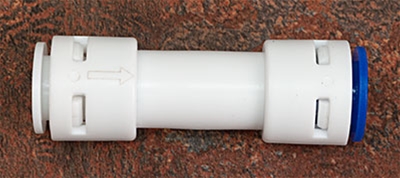

A: The picture has been updated. The flow direction is from the white end toward the blue end. There should be an arrow on the the band that is on the white end.
