Do you want to drink the clearest beer possible from your keg as quickly as possible? The Top Draw® Beer Pick Up Tube fits any ball or pin lock keg, and replaces the rigid stainless dip tube with a stainless float pick up on a food grade silicone hose. This flexible hose holds a 1" stainless beer pickup tube which is held 1" below the surface of the beer by the float. As the level of the beer in the keg drops, the pick up tube remains 1" below the surface, always drawing the clearest beer all the way until empty. The stainless float ball itself is 1.9" in diameter.
Installs in a couple minutes - just unscrew the beer post on your ball lock keg, insert the provided short pick up tube, and attach the silicone tubing to the underside of the tube. Now dangle the hole assembly in the keg and cut the tubing so the float rests on the bottom of the keg. 32" of tubing are included, to fit everything from a Kegmenter to a 2.5 gallon keg.
Note: you will need to cut the tubing to size for most applications.
If you carbonate by C02 injection, you can also convert your keg to one that carbonates quicker, and clears faster. To do this (Cornelius threaded post kegs only), unscrew both posts and remove both dip tubes. Then on the IN side of the keg, install the long beer pickup tube and screw on the GAS side fitting (the one with a notch on the base nut). Then on the OUT side of the keg, install the Top Draw® Dip Tube, and screw on the BEER side fitting (the one without a notch in the base nut). Now when you attach the C02 to carbonate, it will bubble up from the bottom of the keg, carbonating quicker. When you dispense, the floating dip tube will make sure you get only the clearest beer from near the surface.
The only downside to this switch is your gas line is connected to a beer dip tube, and if the pressure in your gas line drops to less than the pressure in the keg, your gas line will fill with beer. This can be prevented with a ball or pin lock check valve like our items P77 and P78, or with an in line check valve like our item D37.

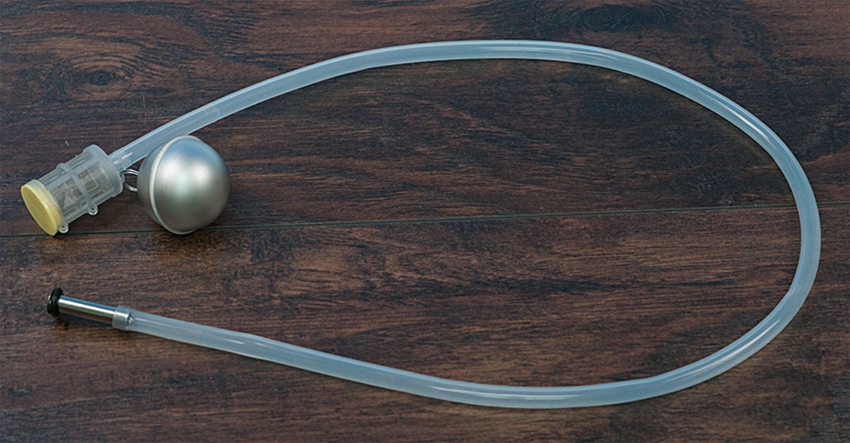

Includes 23" of tubing, 304 grade stainless float with attached pickup tube, and short replacement stainless beer dip tube with seating O ring.
Dec 24, 2022 by Jeff
Q: What tubing do I need to replace the original tubing on the Top Draw?
A: We do not have any replacement tubing available at this time. We are currently looking for compatible replacement tubing for the Top Draw.
Aug 26, 2022 by Steve
Q: Will this (Top Draw® Beer Pick Up Tube) or the FLOTit Floating Dip Tube fit through the neck of the Oxebar pet keg?
A: No, although we will have a filter designed to fit through the Oxebar Pet Keg opening, but not a float.
Nov 18, 2021 by Casey Vess
Q: I bought this and it worked for 1)4 of the Keg. Now it just dispenses CO2. Trying to shake won't work but if I tilt it 45 degrees, it will work. Are there any directions you can post? Any help/ suggestions would be awesome.
A: First make sure the tubing is cut to the correct length and there is not excess tubing which can cause this. With the keg empty, install the float ball and silicone tubing so the float ball just rests on the bottom of the keg with the pickup tube sideways. As your keg is already full, try opening and adjusting the ball so the dip tube is underneath the ball.
Mar 22, 2021 by duh
Q: What internal diameter of the tubing?
A: This flexible thin wall tubing is .26" in interior diameter, with a wall thickness of .045".
Dec 25, 2019 by John
Q: I'm getting a lot of foam. Pressure is less than 5psi. Where does it come from?
A: It sounds like your beer is over carbonated. Try shutting off your regulator and slowly releasing the pressure in the keg by pulling up on the ring on the pressure release valve on the keg lid.Make sure the beer is cold enough. Get the temperature below 40°F. Let it sit for a 20 minutes then try and draw out some beer. Don't turn the regulator on again until the beer stops flowing, then turn it back on and set it to 3-5 PSI.
It tends to suck CO2.
This floating dip tube works well most of the time. Unfortunately, it tends to float too well and then the intake draws CO2 instead of beer. I solved the problem by slipping a stainless steel 3/4 inch nut onto the hose. Now it works fine.
Works perfectly. Nice clear beer and no stoppages so far. Good economical way to get clear beer
After purchasing the Fermzilla and seeing how great the floating pickup tube on those worked I replaced 4 of my standard dip tubes with 2 more to be replaced with this floating dip tube. Zero issues and clean clear beer. Will never return to the standard.
I bought two. Neither of them float below the surface. The pickup tube sits on the surface-- sometimes drawing beer and other times drawing just co2. No idea what I'm doing wrong. William's Brewing Responds: If one draws C02, shake the keg a bit to settle the pickup tube below the float.
Not sure what the deal is but occasionally the diptube doesn't fully submerge and pulls co2 through the line causing to pour nothing but gas or foam. It doesn't always happen but when it does it's frustrating. Usually happens when filling a growler. I actually opened the keg to replace it with a normal diptube and that's what I saw. It's a bummer because it's such a nice and simple idea/design, but it just doesn't quite cut it.
