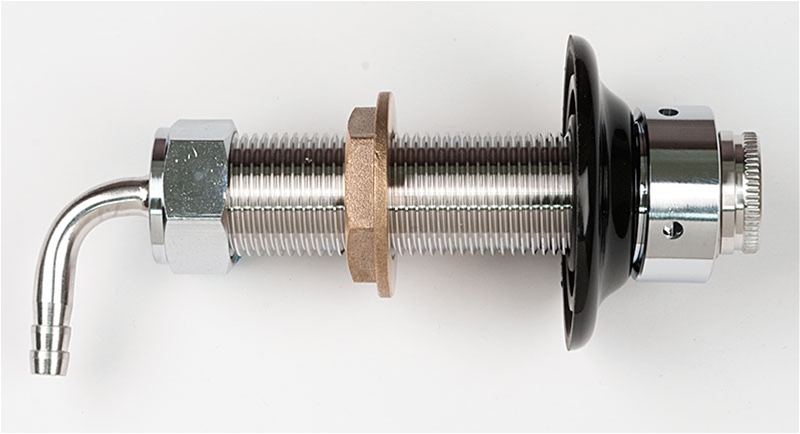

Intertap 4" Stainless Shank Assembly

  • Item #L02
  • Price: $29.99
Currently Sold Out
Share |

This stainless shank includes a stainless 1/4" hose barb exit. Features a spring hole to hold the optional Intertap Faucet Spring, a stainless spring that works only with Intertap Shanks and Intertap Faucets to add a self closing function.

The Intertap shank fits Intertap Faucets only.

The minimum wall thickness for this shank is 1/2", maximum 2 1/2".  You will need to drill a 7/8" (22mm) hole to install this shank. You can use our item B33 22mm hole saw to drill a suitable hole in metal, plastic, or wood.





(2)
Average rating 10 out of 10 ( based on 2 reviews )

Works very well especially spring loaded

Review by Kerry on 1/1/2017

This shank is designed to work with the spring and it does work with that. Advise: The spring will not work with a Flow Control handle, but it does work with the regular handle. It's a very good quality shank and should last a lifetime.

Intertap shaft

Review by Marty on 3/15/2019

Well built, and needed to use the self closing spring.

Write a Review

Jun 07, 2019 by Nick Parker

Q: Are these the newer versions that are compatible with the DuoTight fittings? Like these: https://www.kegland.com.au/intertap-duotight-compatible-ss-short-shank.html

A: No, these are compatible with 3/16" tubing, and have a hose barb.


May 31, 2018 by Curt

Q: Can you provide a version of this shank with a 1/4" MFL tail piece instead of the bent hose barb tail piece?

A: No, the hose barb is welded in place. However, we do have a 4" non Intertap Shank (it will not accept the Intertap self closing spring) which is our item R38. On the back end of this you can attach our item J43 by using backnut Q90, and washer Q93.


Apr 13, 2018 by Ross

Q: Is the tail piece removable? I very much would like to have the faucet spring, but I have a very limited space (that is too big for the Intertap Tower Shank) and may have to cut down the length of this one.

A: Yes, the tail piece is removable. It is comprised of a nut, a washer and the curved nipple.


Jan 12, 2018 by Ron

Q: Does this Intertap shank included the spring?

A: No, the spring is an optional part


Jan 09, 2018 by Tim

Q: I have exactly 2 1/4" from the outside of my refrigerator door to the inside wall of my refrigerator door. Will the "approximately" 2 1/8" work for this application?

A: This will fit, we remeasured the shank and you can get 2 1/2 inches width between the securing nut and the flange.
