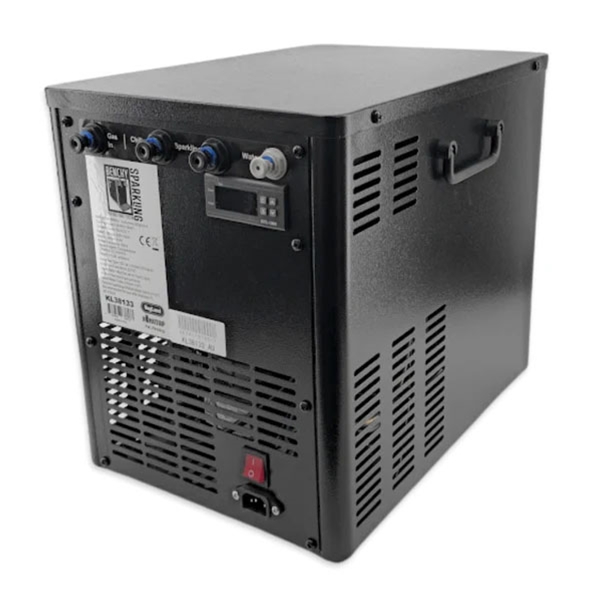

Benchy Sparkling Zero

Benchy Sparkling Zero is the under counter answer for instant chilled and carbonated water on demand.  This installs under your sink, and you connect tap water and a CO2 Cylinder with Regulator to the unit and dispense unlimited sparkling and chilled water through the KegLand Mixer Tap or the KegLand Dual Outlet Water Tap. The Sparkling Zero is identical to the Benchy Sparkling, although without the more expensive polished stainless steel case.

Using the regulator, you are able to adjust and really dial in carbonation levels to your specific taste preferences which you are unable to do on other similar systems on the market.

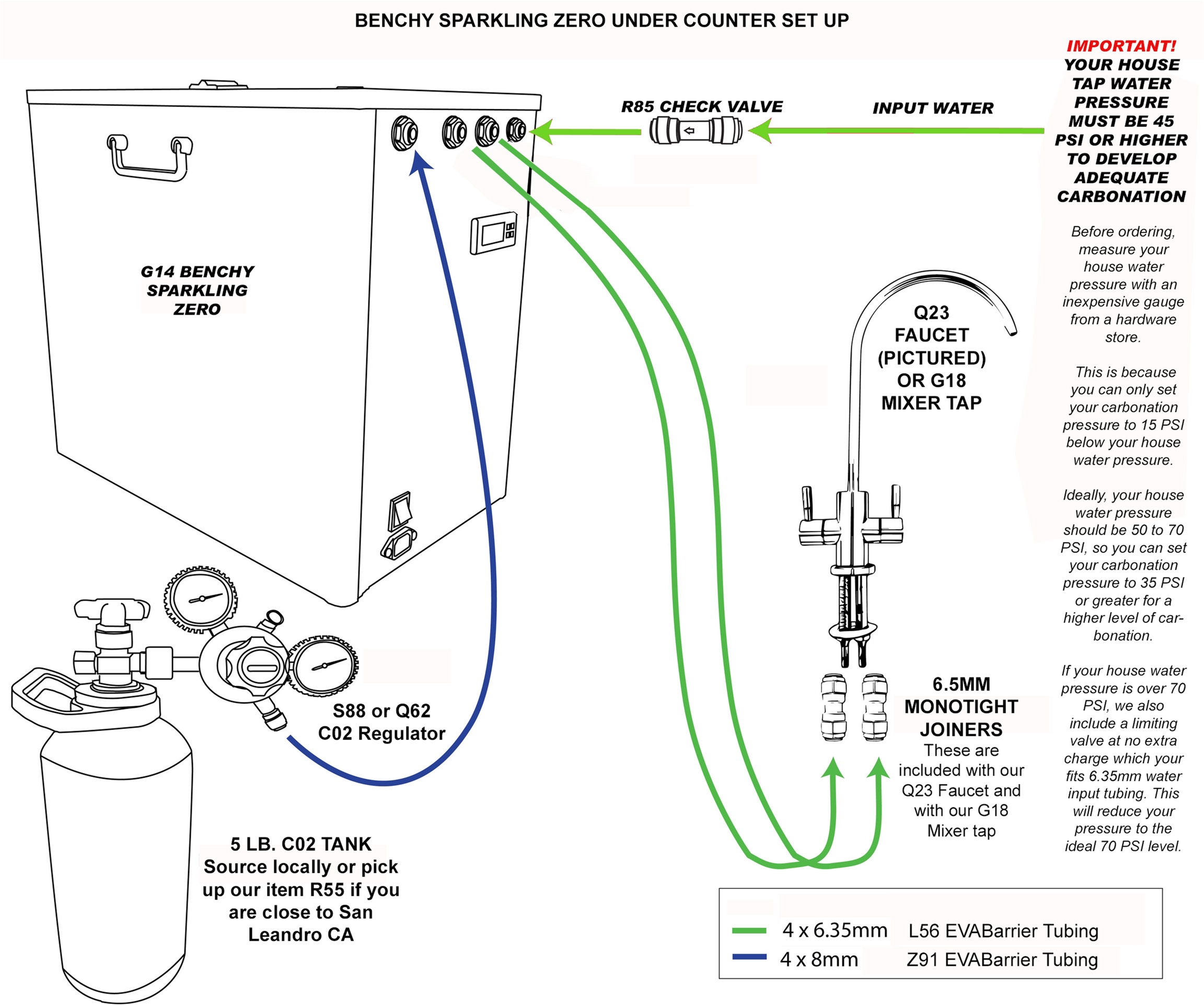

Basic Setup Is As Follows*

1. Plug into the wall

2. Fill internal water tank

3. Connect house water supply

4. Connect CO2 Cylinder and Regulator (not included)

5. Attach to your KegLand Dual Outlet Water Tap or KegLand Mixer Tap which you install on your counter top.

*Ensure that the unit is installed and operated according to the instruction manual which can be found by clicking here.

Fully Adjustable - The Benchy Sparkling Zero has integrated (centigrade only) digital temp controller so you can control the temperature from 1° C and up to 10° C (from 33° to 50° F.)  You can also vary the carbonation level from 0.5 volumes to over 5 volumes for super bubbly water.

Cooling Performance - The Benchy Sparkling Zero is able to chill about 5 gallons of sparkling water per hour (based on ambient water and air temperature of 68° F).  To further increase the capacity of this unit you can pre-chill the house water supply either by a holding tank (Keg) in the fridge or a G40 Chiller.  If you pre-chill the tap water supply you can  double the output of the Benchy Sparkling.

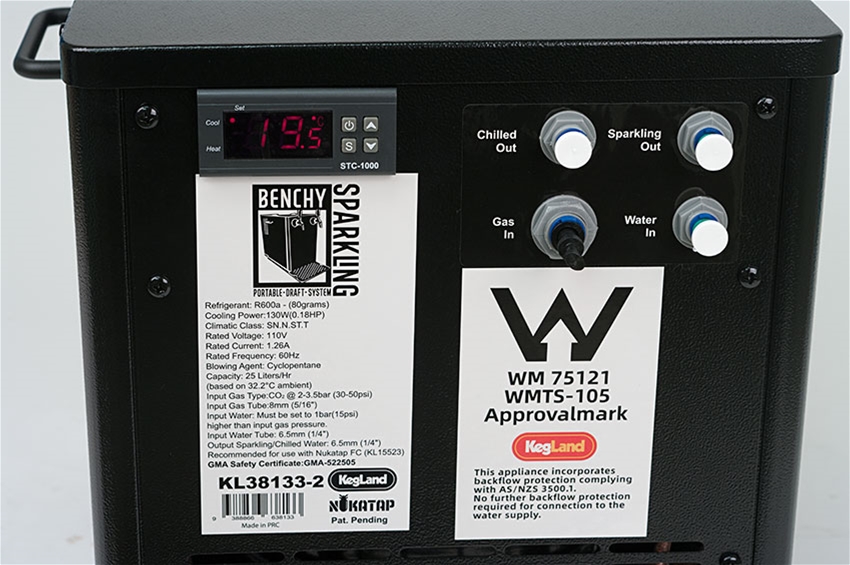

Specifications:

Height: 19”
Width: 12”
Depth: 21” (Excluding sight glass that can be removed)
Refrigerant: r600a - (80grams)
Cooling Power: 600watts, 110 volts.
Power Consumption: 290w (idle power consumption less than 5 watts)
Capacity: about 25L per hour (based on 68° F. ambient temperature)
Input Gas: CO2 30 to 50 PSI (8mm (5/16) OD Tube)
House Water Supply: Must be at least 45 psi (15psi) higher than gas pressure (6.35mm (1/4") OD Tube)
Sparkling/Chilled Water Out: 8mm (5/16") OD Tube

IMPORTANT: This is a complex product with many configuration options. We highly recommend you read the product instructions before ordering. Click here for instructions.

Other recommended accessories:

1 x filled C02 Gas Cylinder (purchase locally, we cannot ship these). If you can pick up in San Leandro CA, order our filled C02 bottle R55

1 x S88 Gas Regulator

1 x Z91 EvaBarrier 4mm ID by 8mm OD Tubing

1 x L56 3mm by 6mm EvaBarrier Water Tubing

Water Supply Valve for icemaker that takes ¼" tubing (get at a hardware store)

1 x R85 DuoTight 6mm Check Valve for incoming tap water line

If you want external faucets on the front of the machine you will also need:

2 x E49 Nukatap Flow Control Faucets

2 x Q49 Black Faucet Handles

2 x Z20 Nuktap Faucet Shanks
