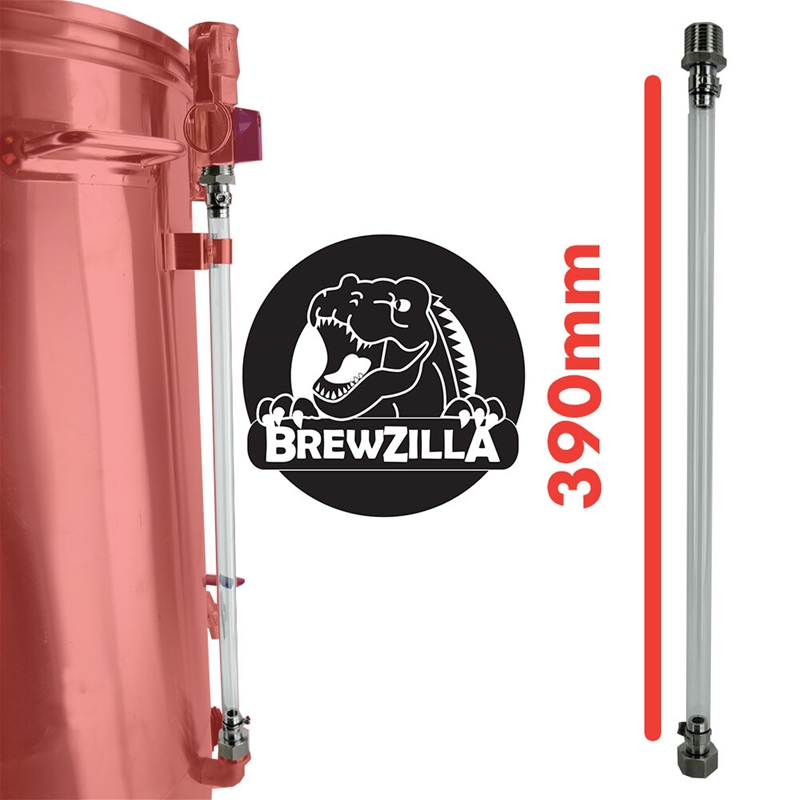

This kit converts a 35 or 65 Liter 3.0, 3.1, and 3.11 Brewzilla to have a polycarbonate sight glass on its side in place of the recirculation tube. This does not fit the Gen 4 Brewzilla.
To convert your Brewzilla:
1. To remove your stainless steel sight glass, start by removing the two screws that mount the top section of the recirculation tube.
2. Then using a wrench *not included* loosen and remove the bottom 1/2" female fitting. There is a small white washer underneath. Move that to the side as we'll need that later for the upgrade!
3. Swap over the camlock fitting
Please note you may need to use varying amounts of thread tape to get it to seal in the right position once it has been tightened back down on the female bottom end.
The sight glass itself is not made from glass, it is made from robust polycarbonate. If using PBW, keep contact times short to prevent discoloration.
Jan 28, 2023 by Noe
Q: Will this fit the Gen4?
A: No, this only fits Gen 3 and earlier.
Aug 05, 2022 by Kenny Boudreaux
Q: Is this for all Brewzilla versions? I have v3.1.1.
A: Yes, this fits the 3.1.1 and 3.1
Mar 01, 2022 by Ted Winning
Q: Does the sight glass have graduated markings? In Liters or Gallons?
A: The site gauge does not come with any graduation markings. You will need to mark it yourself using whatever type of volume measurement you work with.
